Volvo L260 Wheel Loader
Compare L260 model references and discuss the attachments your work needs.
- Brand
- Volvo
- Model
- L260
- Category
- Wheel Loaders
- Condition
- Confirmed per sourcing option
- Static tipping load at full turn
- 23,800 kgView reference version
- Location
- Confirmed per sourcing option
- Availability
- Contact us for sourcing options
This is a model guide and sourcing inquiry page. It does not represent a machine currently in stock.
Product Overview

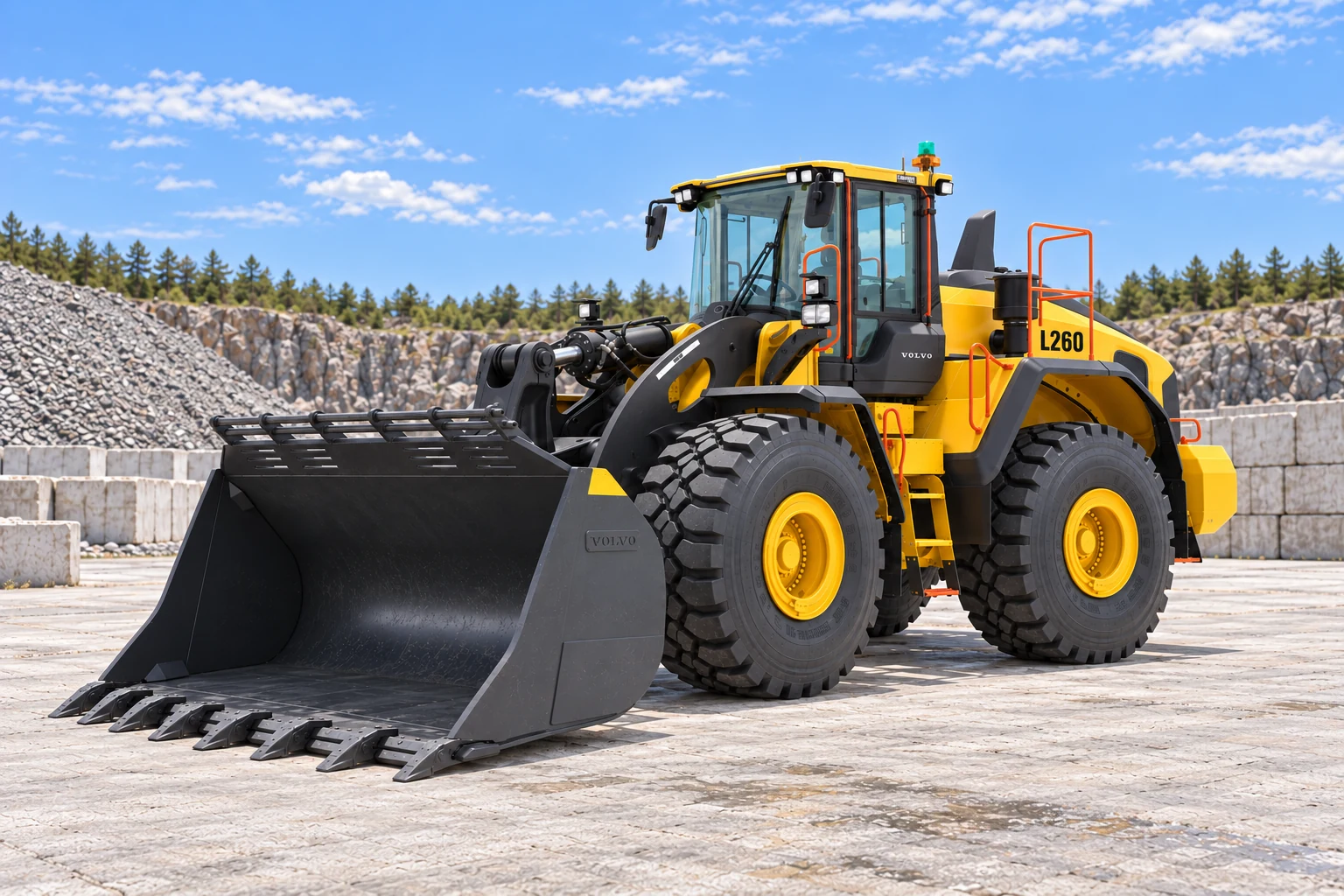

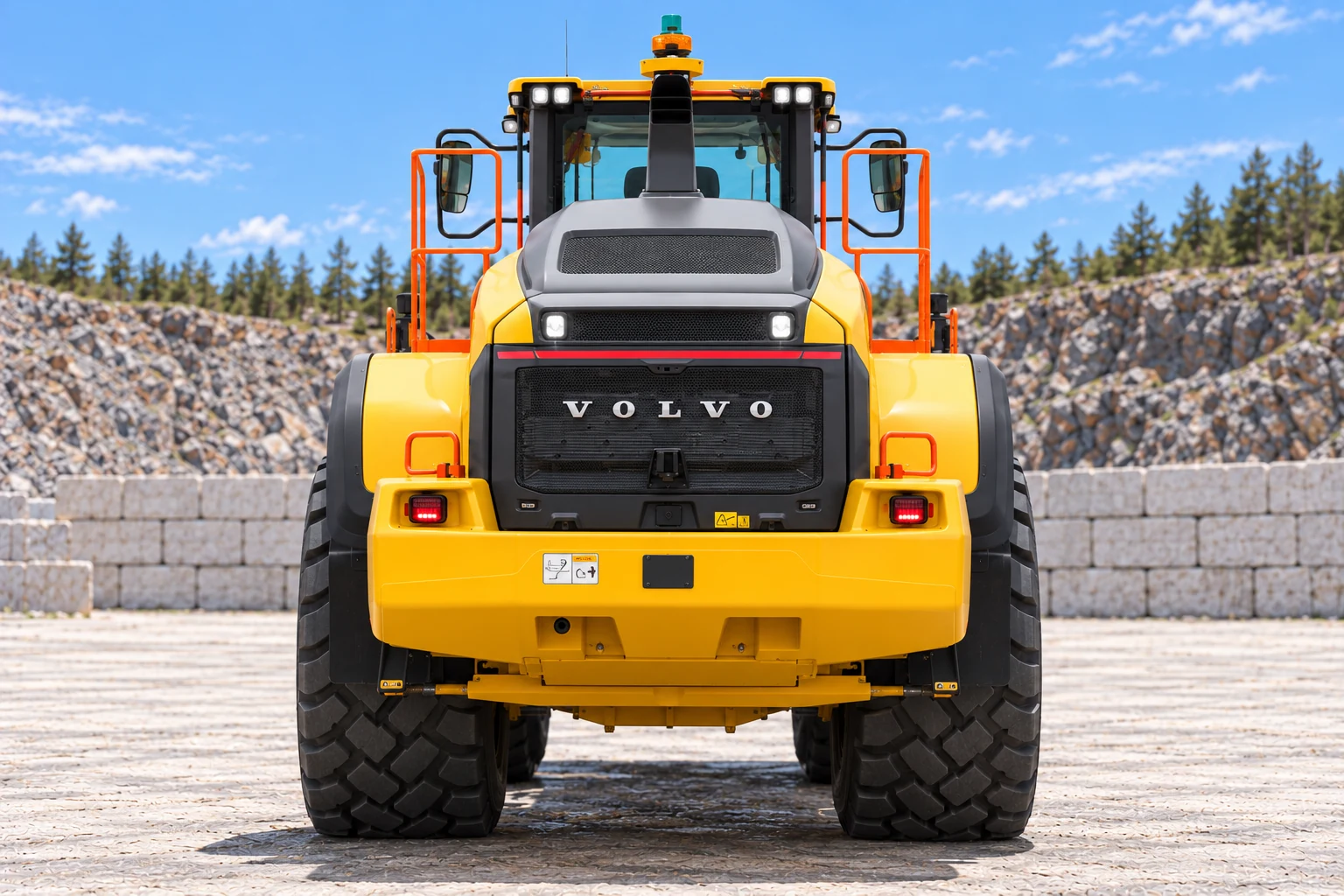

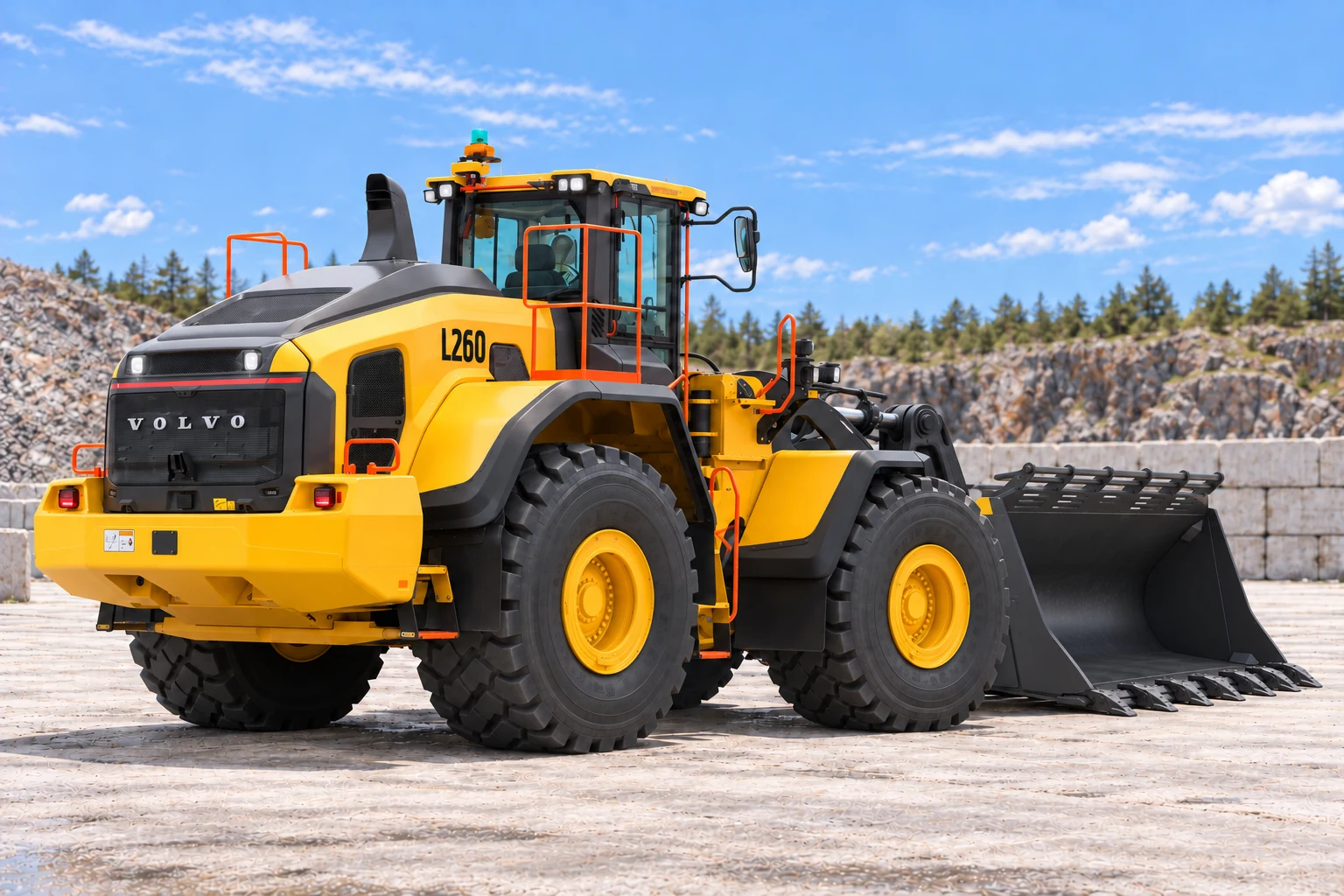

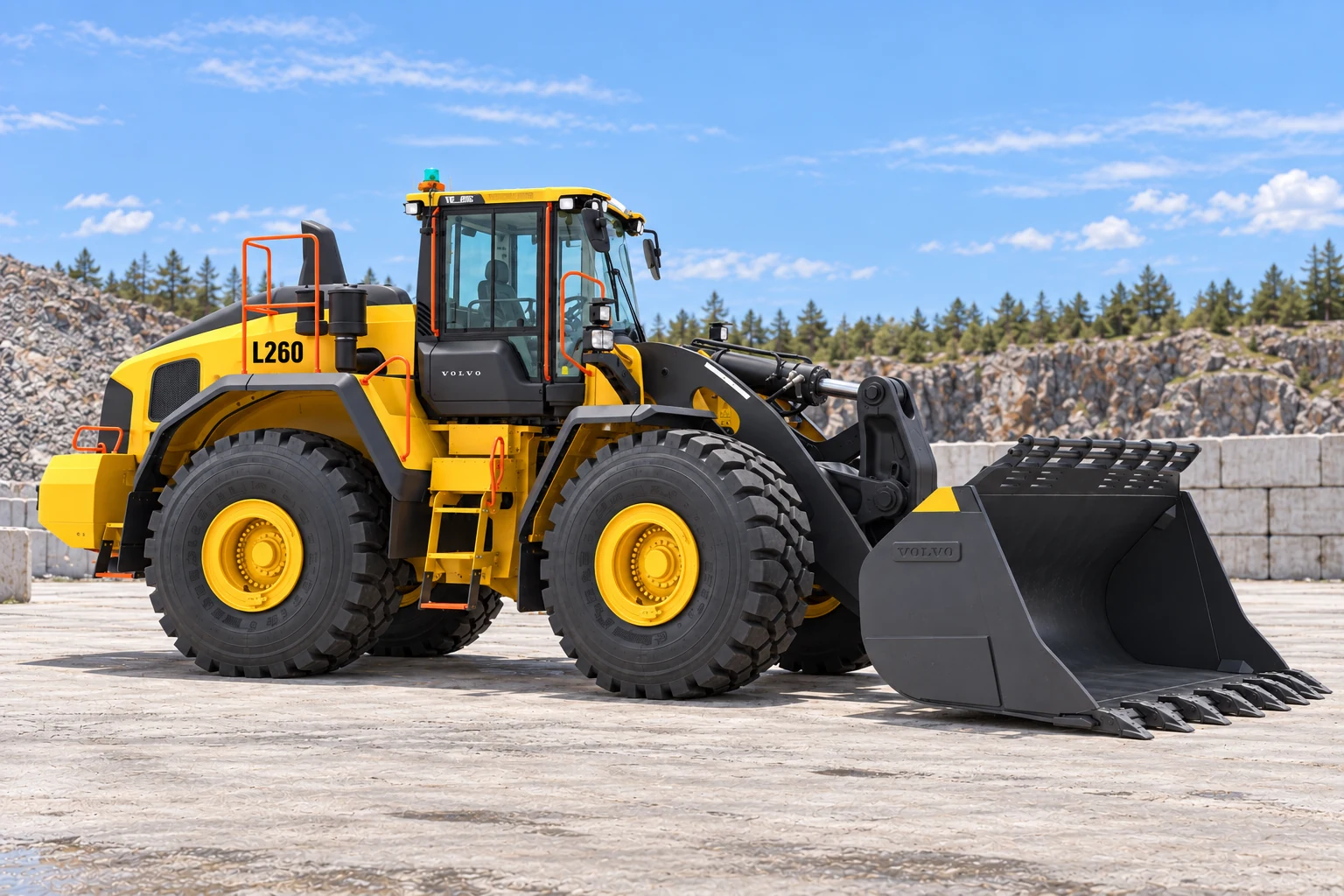

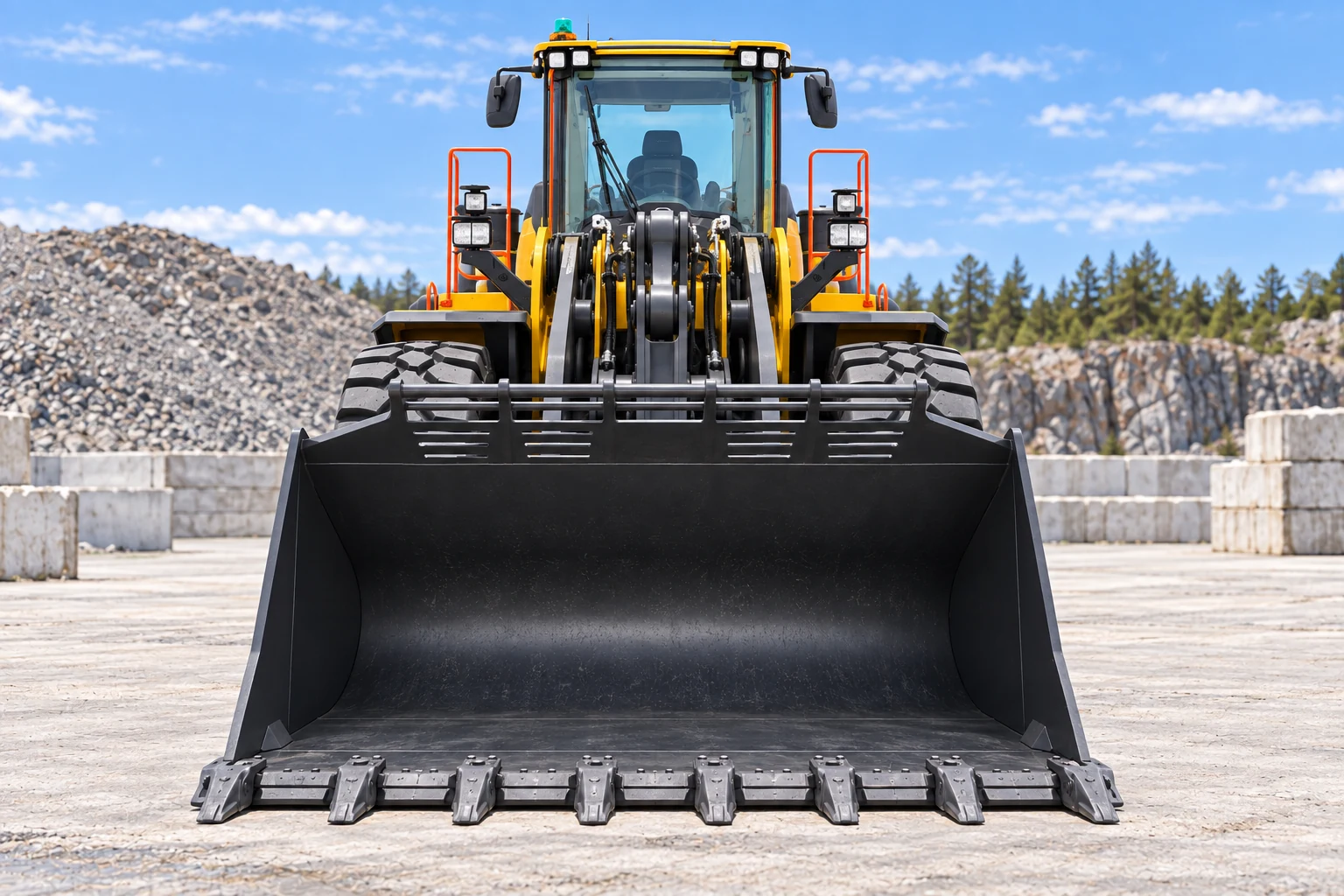

Explore Volvo L260 reference specifications and six illustrative exterior views. Share your loading task, material, site access and destination so our team can discuss sourcing options and the configuration to check for a specific machine.
Typical Specifications *
Reference versionVolvo L260 Europe English product-page reference, VOLVO-M1024-V01; publication date and exact production configuration unconfirmed.
Specification notes
Manufacturer table reference configuration: 6.7 m³ (8.8 yd³) STE BOE P bucket. Bucket capacity is an attachment range, not the capacity of the illustrated or installed bucket. Static tipping load at full turn is not rated payload. Net power and net torque retain separate ISO 9249 / SAE J1349 and ECE R120 standards, with their respective engine speeds. Confirm the specific machine, attachment, tires and market configuration. Separate Stage V appearance guide/gallery do not establish this technical edition; emissions and production year are not adopted.
- Static tipping load at full turn
- 23,800 kg
- Operating weight
- 34,000 - 39,000 kg
- Engine
- Volvo D13J
- Engine speed at maximum power
- 1,400 - 1,900 rpm
- Net power (ISO 9249, SAE J1349 net)
- 309 kW
- Net power (ECE R120 net)
- 310 kW
- Engine speed at maximum torque
- 1,100 - 1,150 rpm
- Net torque (ISO 9249, SAE J1349 net)
- 2,328 Nm
- Net torque (ECE R120 net)
- 2,343 Nm
- Bucket capacity
- 5.3 - 10.2 m³
- Breakout force
- 284 kN
- Tires
- 29.5 R25, 875/65 R29
* Use this reference to compare models. Final specifications depend on the selected machine’s identification and configuration.
Need specifications for your requirements?
Contact our team for configuration details and photos of the machine you are considering.
Photos & Video
Purchase Support
MODEL SOURCING INQUIRY
Interested in This
Volvo L260?
Tell us your requirements. We will use them to review suitable sourcing options and provide machine-specific information.
Submitting an inquiry does not reserve a machine or confirm supply.
