Volvo L90H Wheel Loader
Compare L90H model references and discuss the attachments your work needs.
- Brand
- Volvo
- Model
- L90H
- Category
- Wheel Loaders
- Condition
- Confirmed per sourcing option
- Static tipping load at full turn
- 10,100 kgView reference version
- Location
- Confirmed per sourcing option
- Availability
- Contact us for sourcing options
This is a model guide and sourcing inquiry page. It does not represent a machine currently in stock.
Product Overview

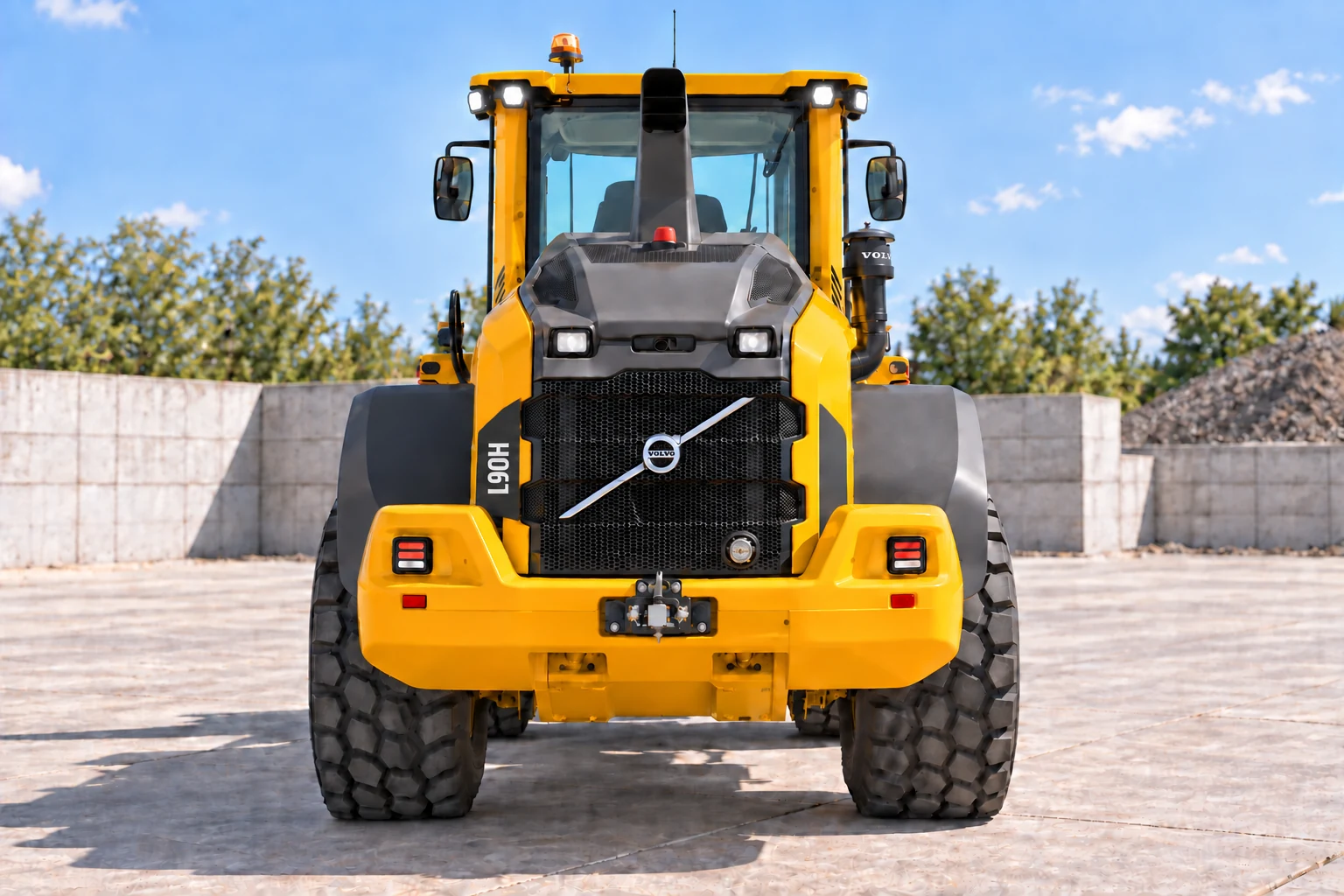

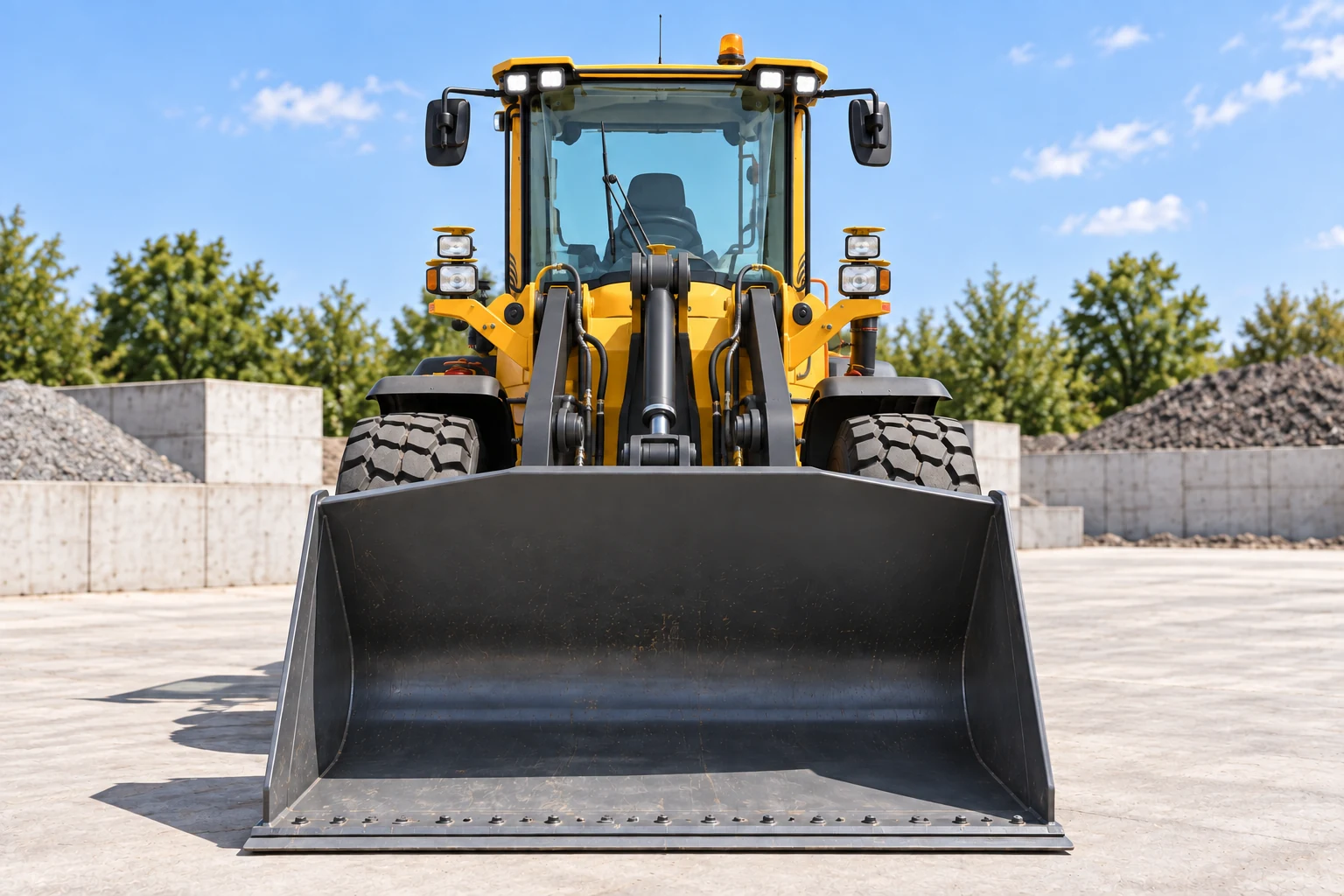

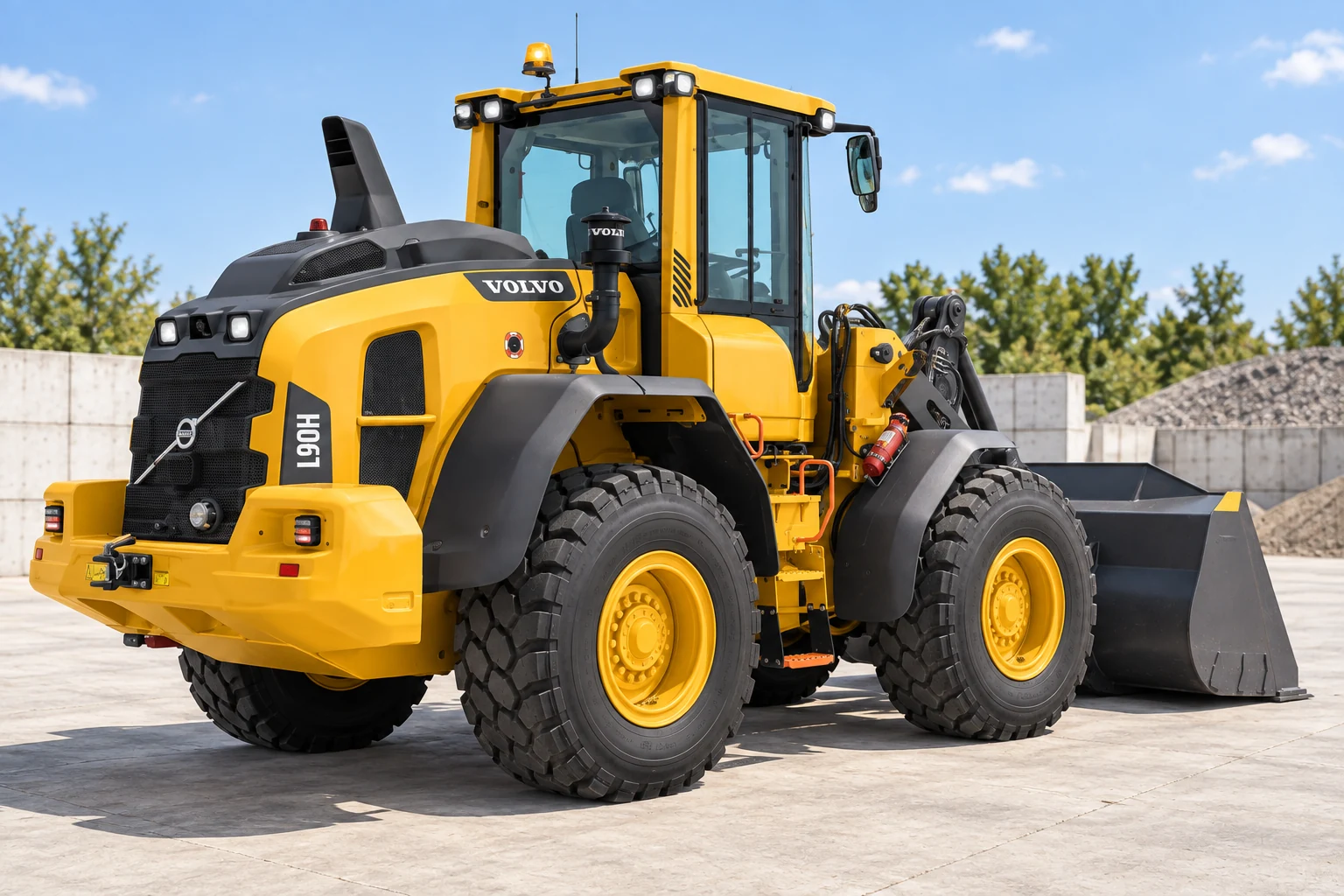

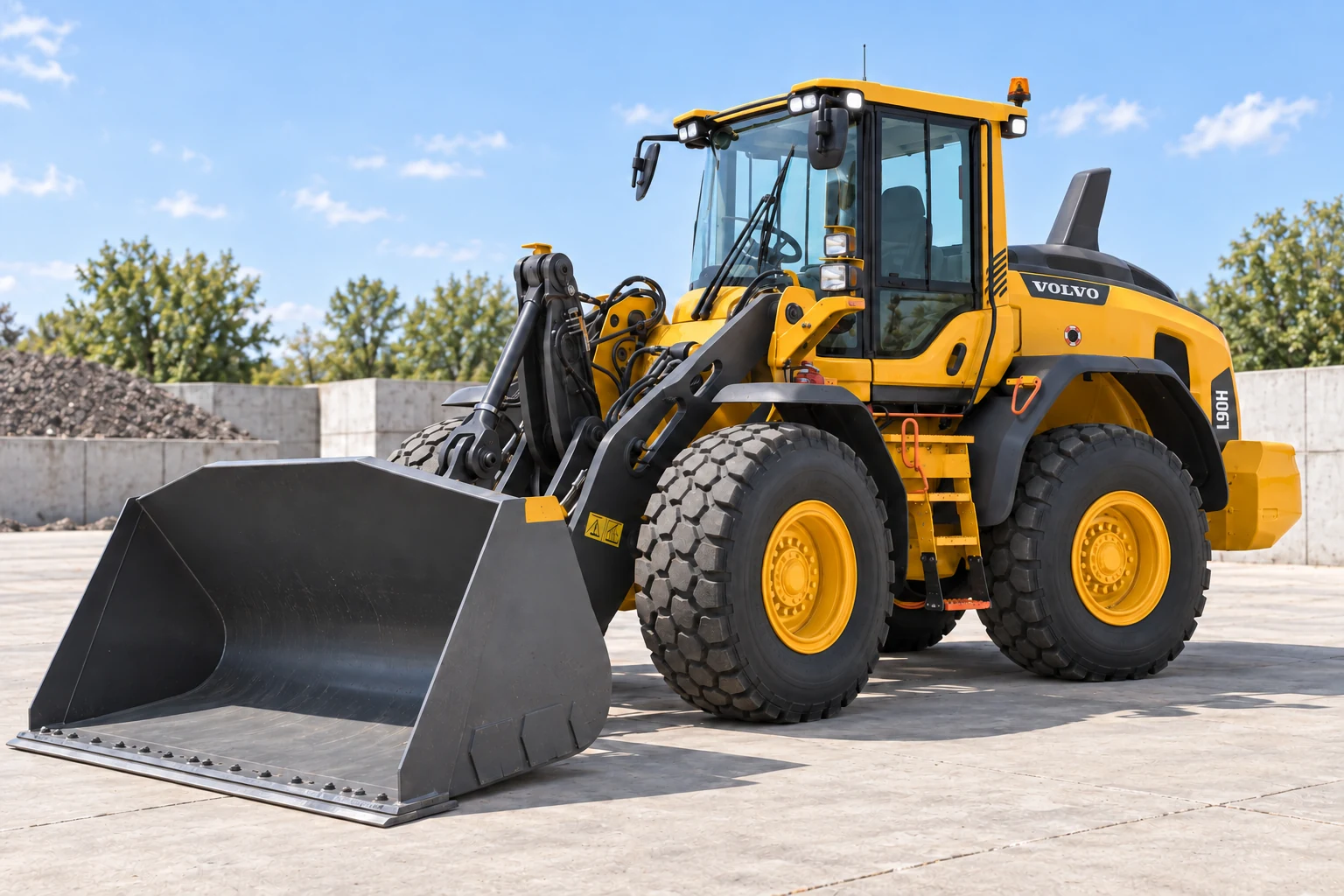

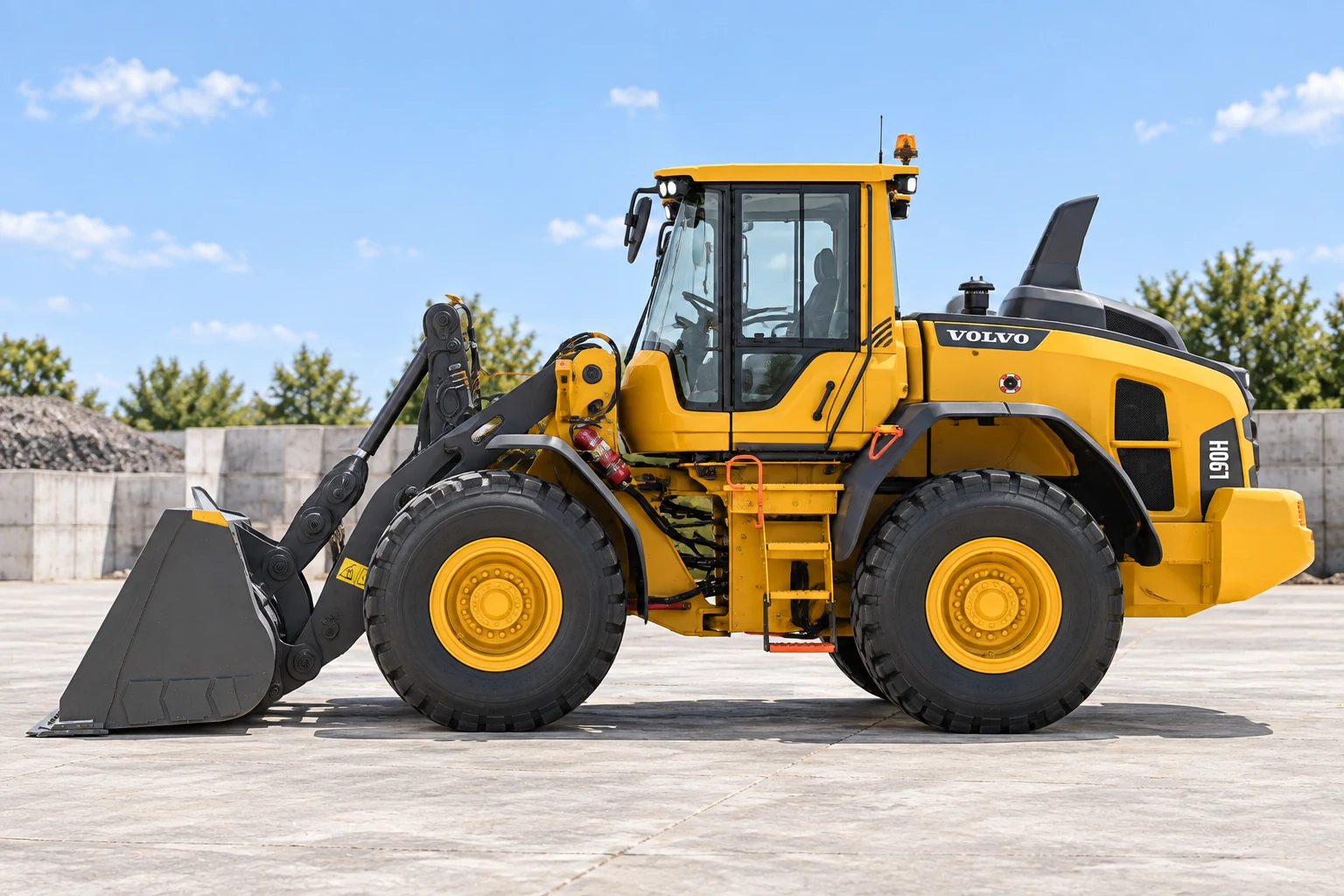

Explore Volvo L90H reference specifications and six illustrative exterior views. Share your loading task, material, site access and destination so our team can discuss sourcing options and the configuration to check for a specific machine.
Typical Specifications *
Reference versionVolvo L90H Europe English product-page reference, VOLVO-M1031-V01; publication date and exact production configuration unconfirmed.
Specification notes
Manufacturer table reference configuration: 2.7 m3 (3.7 yd³) STE P BOE bucket. Bucket capacity is an attachment range, not the capacity of the illustrated or installed bucket. Static tipping load at full turn is not rated payload. Net power and net torque retain ISO 9249 / SAE J1349 standards and their separate engine speeds. Confirm the specific machine, attachment, tires and market configuration. The separate Stage V appearance guide does not establish this technical edition; emissions and production year are not adopted.
- Static tipping load at full turn
- 10,100 kg
- Operating weight
- 14,500 - 17,300 kg
- Engine
- Volvo D6J
- Engine speed at maximum power
- 1,400 - 1,900 rpm
- Net power (ISO 9249, SAE J1349 net)
- 137 kW
- Engine speed at maximum torque
- 1,400 rpm
- Net torque (ISO 9249, SAE J1349 net)
- 934 Nm
- Bucket capacity
- 2.2 - 7 m³
- Log grapples
- 1.3 - 2.4 m²
- Breakout force
- 140 kN
- Tires
- 20.5 R25, 650/65 R25
* Use this reference to compare models. Final specifications depend on the selected machine’s identification and configuration.
